修補材料
a.       Patching Glue:
灌注膠：
Sikadur-52 will be adopted as patching glue in this work. Please find below for the detail information of it:
Sikadur-52將被采用作為灌注膠使用。Sikadur-52的詳細信息如下：

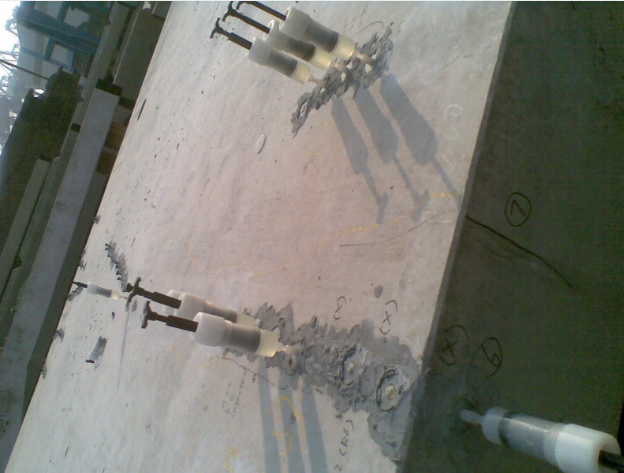

現場施工圖片

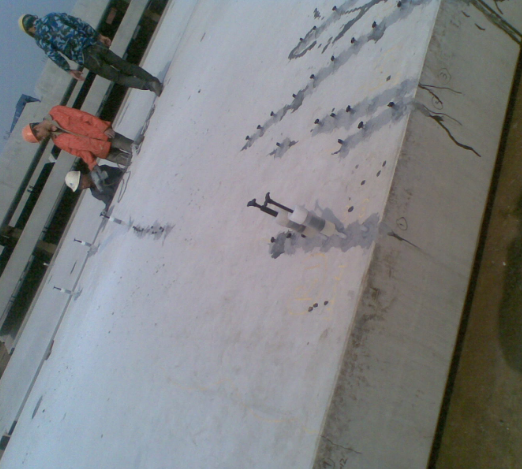

裂縫修補現場施工圖片2

Sikadur-52
Sikadur-52 is two parts, solvent-free, low viscosity injection-liquid, based on high strength epoxy resin. It is used for substrate temperatures between +5°C and +30°C.
Sikadur-52 是一種雙組份、無溶劑，低粘度高強環氧樹脂基注漿液。Sikadur-52 可用于其溫度在+5°C 和+30°C 間的基面上。

Use
用途
As an injection resin with good adhesion to concrete, mortar, stone, steel and wood, Sikadur-52 is used to fill and seal voids and cracks in structures such as bridges and other civil engineering buildings, industrial and residential buildings, e.g. columns, beams, foundations, walls, floors and water retaining structures. It not only forms an effective barrier against water infiltration and corrosion promoting media, but it also structurally bonds the concrete sections together.
作為一種與混凝土、砂漿、石頭、鋼材和木材有良好粘接性的注漿樹脂，Sikadur-52 被用來填充和密封橋梁和其他土木工程建筑，工業和民用建筑結構中的空隙和裂縫，例如用于中的柱、梁、基礎、墻、地面和蓄水結構等。它不僅可有效地防止水滲透和腐蝕介質的侵蝕，而且可作為混凝土構件間的結構粘接劑。

Characteristics and Advantages
特性
Solvent-free
Suitable for both, dry and damp conditions
Usable at low temperatures
Two grades for different climatic conditions (Normal and Long Potlife)
Shrinkage free hardening
High mechanical and adhesive strengths
Hard but not brittle
Low viscosity
Injectable with single component pumps
無溶劑
可在干燥和表面干燥情況下使用
可在低溫下使用
針對不同氣候環境有兩個類型（一般的和長適用期的）
硬化后無收縮
高力學性能和粘接強度
硬而不脆
粘度低
用單組分泵即可注射
